MaxxECU RACE PREMIUM (ECU, harnesses, accessories and LSU 4.2)
More information
MaxxECU RACE, based on our MaxxECU PRO and uses the same easy to use, yet powerful MTune software.
Specification:
- All 3-12 cylinder engines (4-stroke)
- Up to 8 cylinders fully sequentially
- Up to 12 cylinders in wasted spark
- Lambda (WBO) sensor. Supports Bosch LSU 4.2, 4.9
- 2 trigger inputs. VR or digital. Automatic trigger level detection
- 2 extra temperature sensors
- 2 knock sensor inputs
- 6 extra 0-5V inputs
- 4 extra digital inputs (VR / hall) or switches
- 8 EGT TYPE-K/N inputs (1200C/2200F) in separate harness
- 8 peak/hold injector outputs
- 8 ignition outputs
- 9 extra LOW DRIVING outputs for additional features
- 2 extra +12V DRIVING outputs
- 4 extra motor outputs
- Full MaxxECU RACE Features - Here

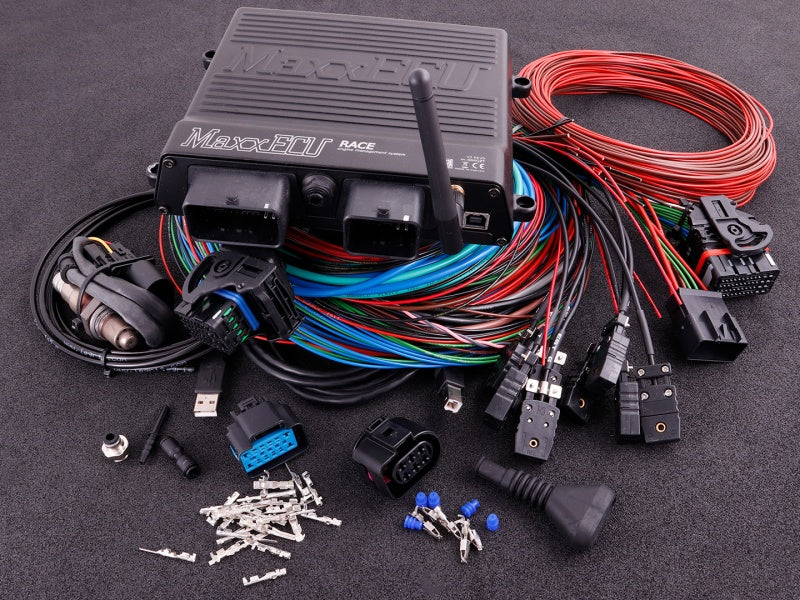

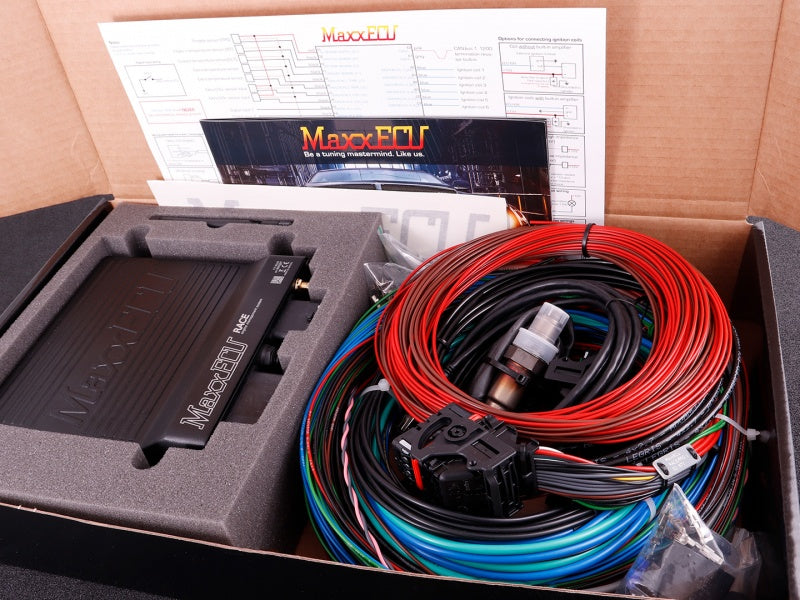

Products Included In This Package
1 x 871
MaxxECU V1/RACE/PRO flying lead wiring harness connector 1
1 x 1787
MaxxECU RACE harness 2 (EGT, E-Throttle, extra)
1 x 107
Lambda Sensor Bosch wideband lambda LSU 4.2
1 x 894
Connector 6-way socket housing (LSU 4.2 wideband sensor)
1 x 927
Connector 12-way socket housing GT150 (fits MaxxECU harness)
1 x 949
MaxxECU Bluetooth mobile antenna
1 x 924
MaxxECU USB PC cable 1.5m (STREET/V1/RACE)
1 x 928
MaxxECU hose kit (MAP sensor incl nipples)
1 x 1052
MaxxECU extra cable for installations
2 x 1235
MaxxECU sticker
1 x 1852
MaxxECU Quick Guide (English)
