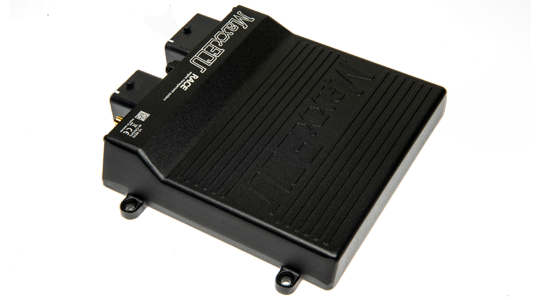

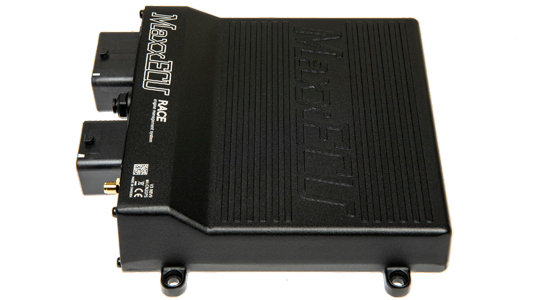

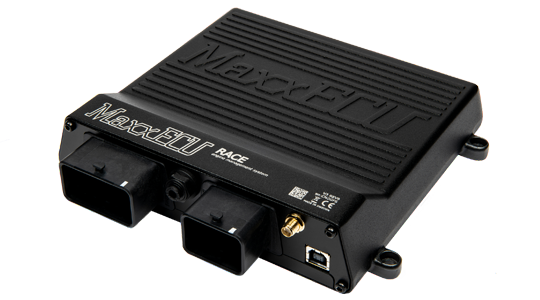

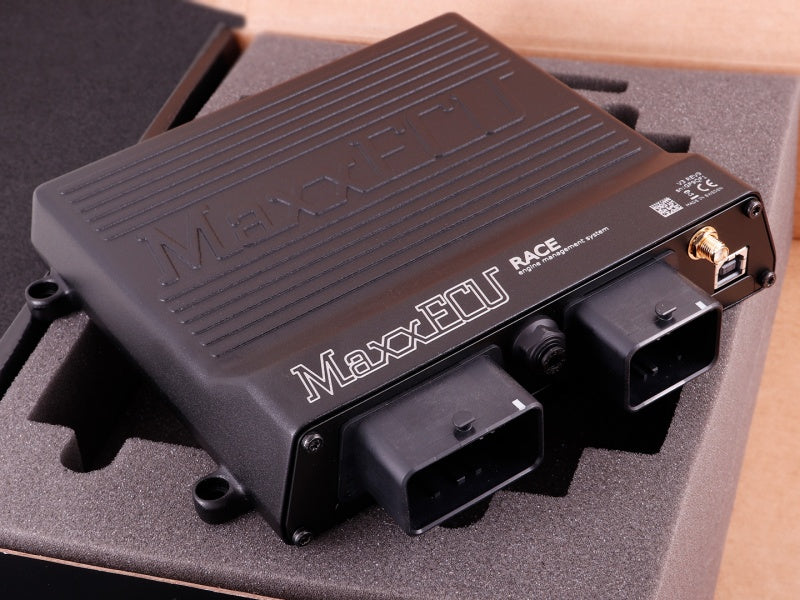

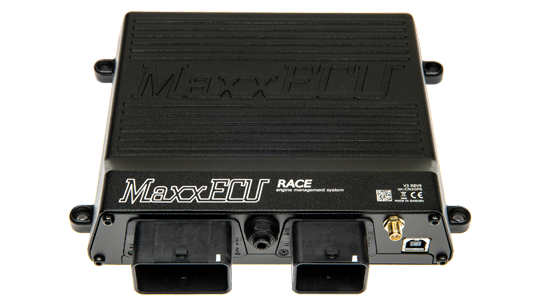

MaxxECU RACE, based on our MaxxECU PRO and uses the same easy to use, yet powerful MTune software.
Specification:
- All 3-12 cylinder engines (4-stroke)
- Up to 8 cylinders fully sequentially
- Up to 12 cylinders in wasted spark
- Lambda (WBO) sensor. Supports Bosch LSU 4.2, 4.9
- 2 trigger inputs. VR or digital. Automatic trigger level detection
- 2 extra temperature sensors
- 2 knock sensor inputs
- 6 extra 0-5V inputs
- 4 extra digital inputs (VR / hall) or switches
- 8 EGT TYPE-K/N inputs (1200C/2200F) in separate harness
- 8 peak/hold injector outputs
- 8 ignition outputs
- 9 extra LOW DRIVING outputs for additional features
- 2 extra +12V DRIVING outputs
- 4 extra motor outputs
- Full Maxxecu Mini details here.
