Mitsubishi EVO IV - VIII MaxxECU RACE Plugin EXTRA
The EGR valve is not controlled.
Stock EVAP can be removed and freeing up GPO 7 for extra in/out on MaxxECU. For using the car's standard ODB-2 port an external wiring to ODB-2 port is needed.
More information

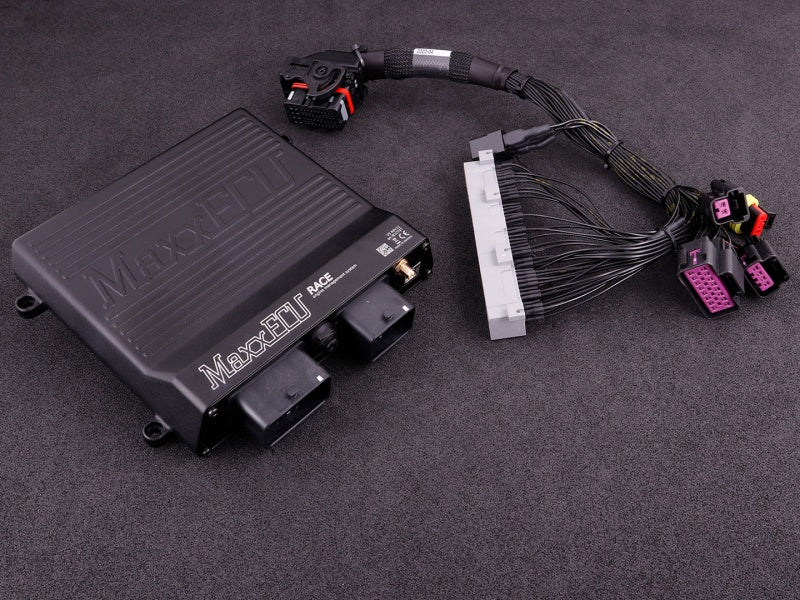

MaxxECU RACE is flexible,reliable and fast. MaxxECU will give you full engine control!
- 8 built-in exhaust temperature (type-k) amplifiers (requires secondary cable harness)
- Built-in 400kPa(3bar boost) MAP-sensor
- Fast and reliable USB PC-communication
- Android MDash app wireless BT-communication as dash
- Stock MAF-sensor can be removed (if exist) and replaced with MaxxECU internal MAP sensor
- Control orginal idle solenoid, AC, tachometer and other original equipment*
- Fuel injectors can be replaced with optional high or low ohm
- Stock lambdasensor(s) must be removed and replaced with included LSU 4.2 wideband oxygen sensor
- No change in the vehicle's original system needs to be done*
- More information on EVO IV-VIII Plugin Solutions - Here
* Technical & Wiring Information - Here
Products Included In This Package

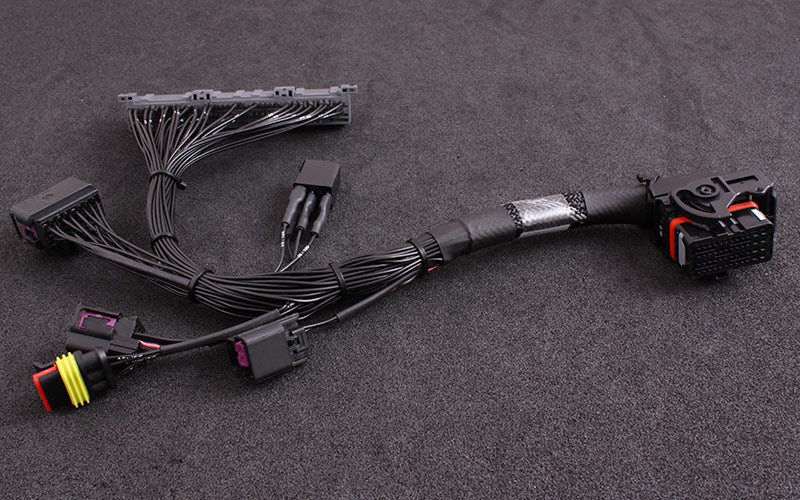

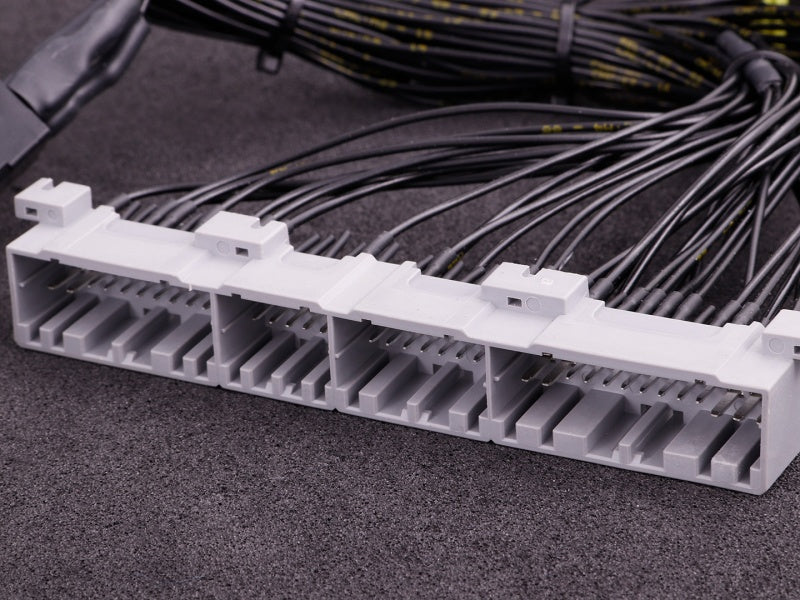

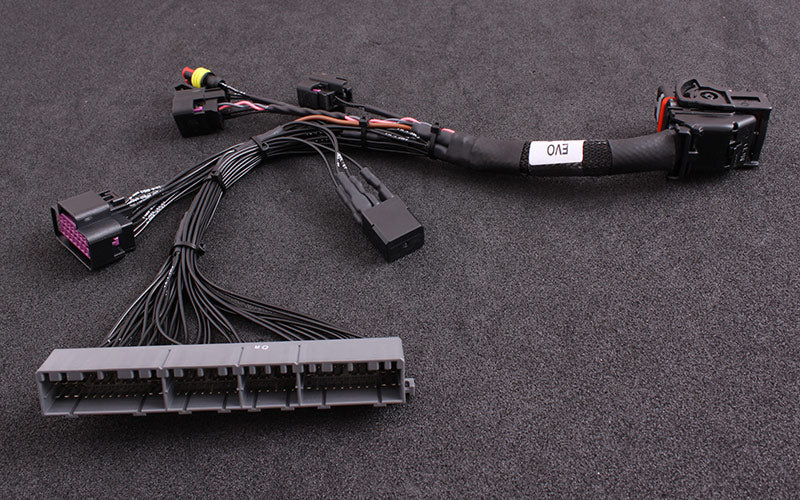

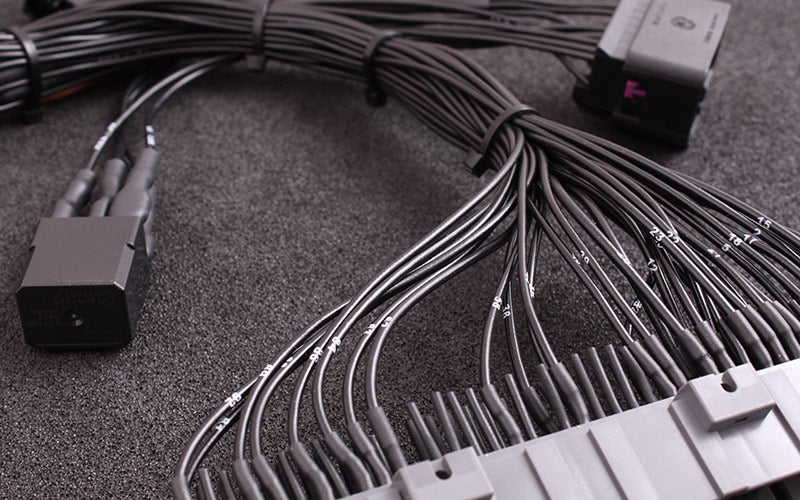

1 x 1619 MaxxECU Plugin Adapter - Mitsubishi EVO IV-VII Plugin Adapter
1 x 107
Lambda Sensor Bosch wideband lambda LSU 4.2
1 x 894
Connector 6-way socket housing (LSU 4.2 wideband sensor)
1 x 924
MaxxECU USB PC cable 1.5m (STREET/V1/RACE)
1 x 928
MaxxECU hose kit (MAP sensor incl nipples)
1 x 949 MaxxECU Bluetooth Antenna
2 x 1235
MaxxECU sticker
1 x 1852
MaxxECU Quick Guide (English)
